INA KWVE35-B-EC-V2-G3 Resim 4

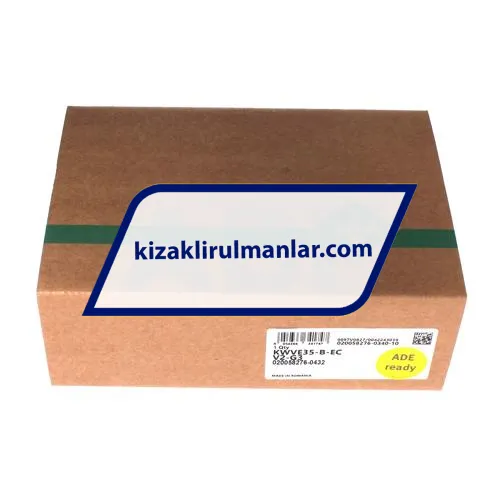

Ürüne ait görsel ürün fotoğrafı ve resmi.
Fiyatı: 2,633.64 ₺
Özellikler
Ağırlık ve Boyutlar
| İç (d) MM |
34 |
| Dış (D) MM |
100 |
| En (B) MM |
76,2 |
| İç (d) Inch |
1.3386 |
| Dış (D) Inch |
3.937 |
| En (B) Inch |
3 |
| Ağırlık |
1.04 kg
|
Ürün Özellikleri
Data from Schaeffler (medias)
| Width carriage (B) mm |
100 |
| Overall length carriage (L) mm |
76,2 |
| Dynamic load rating (C) |
24600 |
| Static load rating (C 0) |
39000 |
| Static moment rating about X axis (M 0x) |
790 |
| Static moment rating about Y axis (M 0y) |
330 |
| Static moment rating about Z axis (M 0z) |
330 |
| ECLASS number |
23-30-04-90 |
| ECLASS2 number |
23-30-04-90 |
| Medias description |
Carriages KWVE..-B-EC, expanded interchangeability, short carriage, four-row |
Suffix description
| B |
Version |
| EC |
Expanded Design, Short Carriage (Carriage Without Screw Threads) |
| V2 |
Preload Class 2 |
| G3 |
Precision Class 3 |
