INA RWU35-E-HL-V3-G1 Resim 5
Ürüne ait görsel ürün fotoğrafı ve resmi.
Fiyatı: 7,363.38 ₺
Özellikler
Ağırlık ve Boyutlar
| İç (d) MM |
34 |
| Dış (D) MM |
70 |
| En (B) MM |
148,7 |
| İç (d) Inch |
1.3386 |
| Dış (D) Inch |
2.7559 |
| En (B) Inch |
5.8543 |
| Ağırlık |
2.14 kg
|
Ürün Özellikleri
Data from Schaeffler (medias)

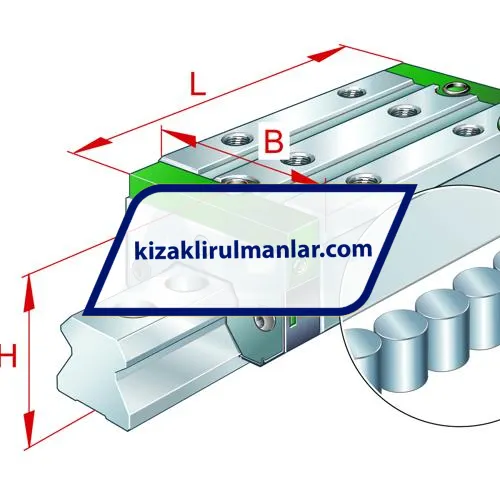

| Width carriage (B) mm |
70 |
| Overall length carriage (L) mm |
148,7 |
| Dynamic load rating (C) |
70000 |
| Dynamic load rating (C 0) |
175000 |
| Static moment rating about X axis (M 0x) |
1500 |
| Static moment rating about Y axis (M 0y) |
3350 |
| Static moment rating about Z axis (M 0z) |
3000 |
| ECLASS number |
23-30-04-90 |
| ECLASS2 number |
23-30-04-90 |
| Medias description |
High, narrow, long carriage with full complement recirculating roller system for linear recirculating roller bearing and guideway assembly, for oil or grease lubrication |
Suffix description
| E |
Version |
| HL |
High, Long Carriage |
| V3 |
Preload Class 3 |
| G1 |
Precision Class 1 |
